The laser marking machine is a marking equipment that does not require consumables. Therefore, the color marked on the object is generally based on the material of the marked workpiece, the model used, auxiliary materials, and the adjusted parameters. It’s not that you can print out what color you want. The laser marking machine can print black, white, gold and color on stainless steel materials.

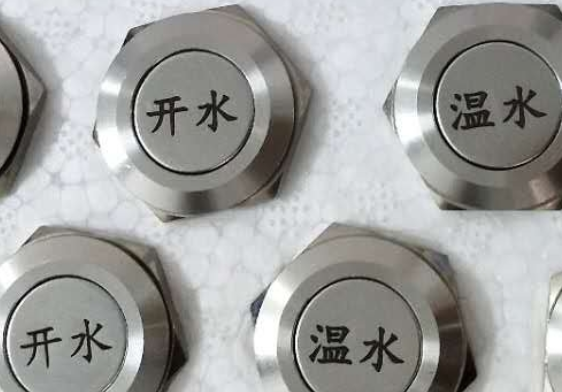

Today, Fulan Laser will talk about how to adjust the parameters of the fiber laser marking machine to make black on stainless steel.

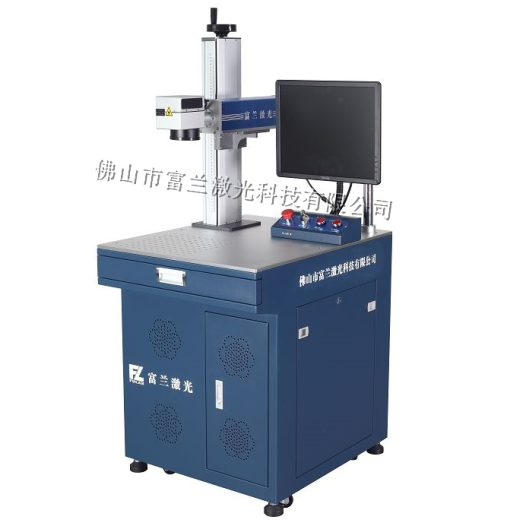

Model used: FL-GQ2Q

1. Filling: select double filling

Fill ①, enable tick, go around the side and tick once, adjust the line spacing to 0.05, adjust the angle to 90, select the gold-blue bow for the type, select 0 for the pen number, and click "Apply".

Fill ②, enable tick, go around the side and tick once, adjust the line spacing to 0.03, adjust the angle to 0, select the blue-red bow for the type, select 1 for the pen number, and click "Apply".

2. Marking parameters: Because it is double-filled, 2 parameters need to be filled in

Parameter①, click the black square to cancel using the default parameters, fill in 0 for current pen number, fill in number of processing 1, speed 550, power 70, frequency 35, turn-on delay -250, turn-off delay 100, end delay 300, corner delay 100.

Parameter ②, click the blue square to cancel using the default parameters, fill in the current pen number, fill in 1, the processing number fill in 1, speed 250, power 60, frequency 40, turn-on delay -250, turn-off delay 100, end delay 300, corner extension Hour 100.

3. Adjust the focus and position.

The above are the tuning parameters for stainless steel laser marking black, but the color of laser marking mainly depends on the nature of the material, followed by the laser power (that is, the power, speed, spacing, frequency, etc.). Therefore, the effects of different condition settings will be different, and the parameters set by different models will also be different. You can mail samples to our company, proofing first to see the effect, proofing is free.
