Users who have used laser marking machines should know that they need to mark the graphics on the workpiece. If the picture is directly imported into the marking software for marking, the marking effect will be distorted, such as: jagged edges appear , Blurry, etc., how can you make the pictures appear undistorted? ——Then the picture must be converted into a vector.

Vector graphics, also known as object-oriented images or drawing images. The simpler vector graphics are graphics composed of closed curves such as points and lines. The vector can be a point or a line. The vector can only be generated by software, and the file takes up less internal space. Because this type of image file contains independent separate images, it can be recombined freely and without restrictions.

The characteristic of vector graphics is that it will not be distorted with the enlargement or reduction of the graphics, and it has nothing to do with the resolution. With this kind of graphics, we can set the filling parameters and marking parameters on the laser marking machine to control the better marking effect. .

It is estimated that there are a few laser marking machine users who do not yet know how to convert the picture into a vector diagram. Do n’t worry, today, Foshan Fulan Laser Editor will explain to you how to use the coreldraw software to convert the picture (ie: bitmap) Into a vector illustration.

The first step: download and install the "coreldraw" software, referred to as "CDR";

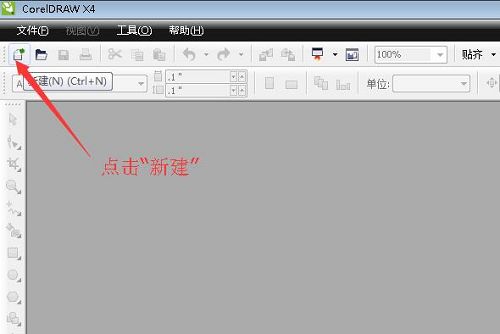

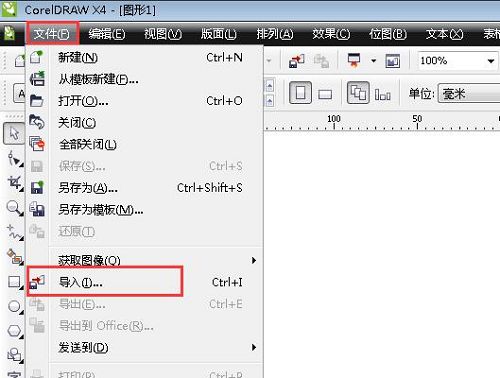

Step 2: Open the CDR software, click "New"; then click the "File" drop-down box, click "Import", select the LOGO picture to be imported;

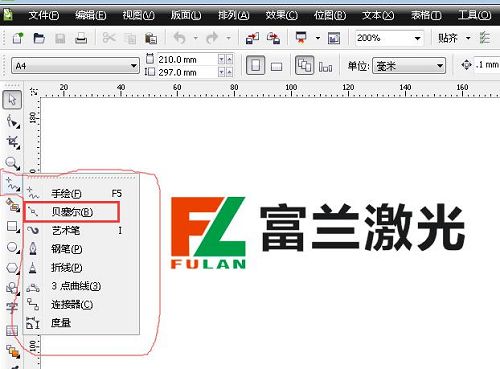

Step 3: Use the "Bezier" tool to trace the outline of the LOGO call;

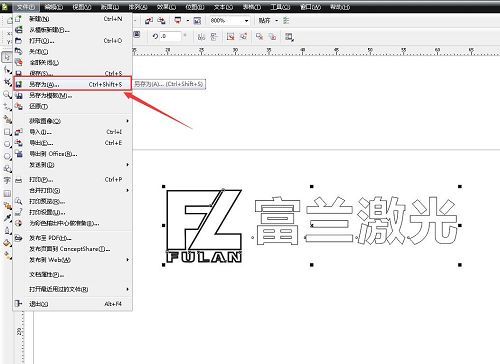

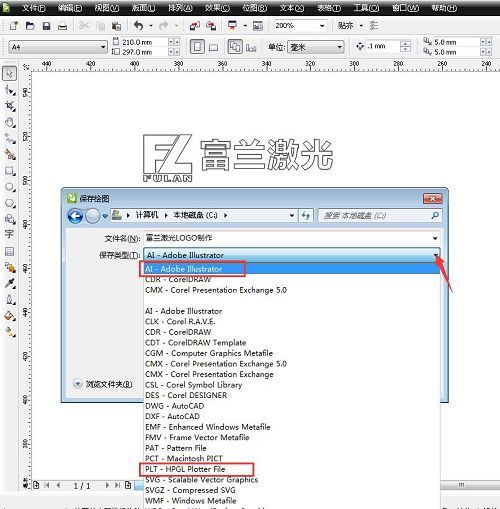

Step 4: Select "File" in the upper left menu bar, select "Save As", save the type as "PLT" or "AI" format, click "Save", and it will be converted into a vector file.
