Large area online laser marking machine
Large area online laser marking machine
Specifications:

Device model: DMJ-GQ20, DMJ-GQ30

Laser power: 20W, 30W

Laser wavelength: 1064nm

Beam quality (M2): ≤1.5 / ≤1.8

Laser repetition frequency: 20 ~ 200KHz

Marking range: 110 × 110 (mm), 170 × 170 (mm)

Maximum linear speed: 9000mm / s

Minimum line width: 0.03mm

Minimum character: 0.15

Cooling method: air cooling

Total power consumption: 550W, 700W

Power demand: 220V / 50Hz

Feature description

1. This machine is customized and can be equipped with a variety of light sources (ultraviolet, green light, optical fiber, CO2, MOPA);

2. At present, this machine is equipped with fiber laser;

3. Adopt optical fiber output, configure high-speed digital scanning head, marking speed is 2-3 times that of traditional models;

4. The electro-optic conversion rate is as high as 30%, and the power consumption is about 10% of the traditional model;

5. Large marking area: the laser marking machine is installed on the sliding table, as long as the laser marking machine is manually or automatically pushed, the area of one working area can reach the area of N working areas, and the movement of the equipment is large. Format stitching, so that high-precision large-format (large area, large-range) marking can be completed at once

6. Automatic focusing function, realize the switching of different marking planes. When performing large-format marking processing, one-time marking processing can be performed on planes of different heights;

7. No consumables, maintenance-free, and long service life.

Application area

It is mainly used for marking various kinds of metal and some non-metallic materials, large or heavy workpieces that are not easy to move; it can also be used for electronic components, hardware tools, electronic products, daily consumer goods, sensors, auto parts, crafts , Precision equipment, gift jewelry, medical equipment, high and low voltage electrical appliances, sanitary ware and other small parts marking.

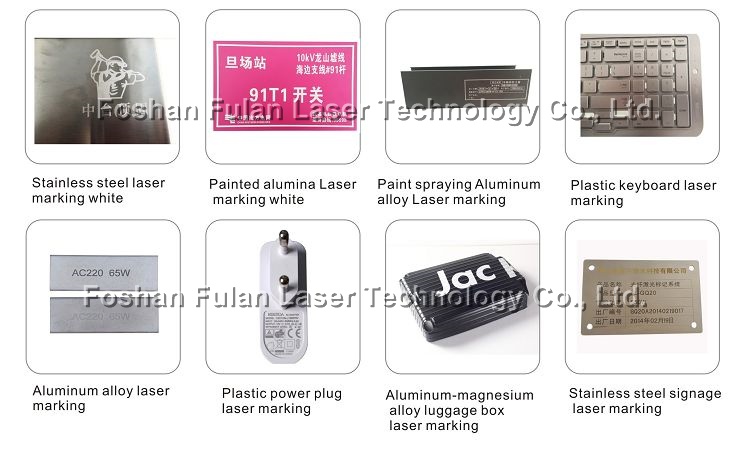

Sample show
