Device model: HG-GQ20 / HG-GQ30
Laser power: 20W / 30W
Laser wavelength: 1064nm
Beam quality (M2): ≤1.5 /≤1.8
Laser repetition frequency: 20 ~ 200KHz
Marking range: 110 × 110, 170 × 170 (mm)
Maximum linear speed: 9000mm / s
Minimum line width: 0.03mm
Minimum character: 0.15
Cooling method: air cooling
Total power consumption: 550W, 700W
Power demand: 220V / 50Hz
Appearance size: 1450 * 780 * 1450mm
1. This machine is customized and can be equipped with a variety of light sources (ultraviolet, green light, optical fiber, CO2, MOPA);
2. At present, this machine is equipped with fiber laser;
3. For products of the same specifications, it can realize assembly line intelligent automatic positioning and marking;
4. Stable operation, faster marking speed, and more effective improvement of processing efficiency;
5. Support automatic coding, printing serial number, batch number, date, bar code, QR code automatic jump number, etc .;
6. The rotary encoder can be connected to detect the speed of the pipeline in real time to ensure the high-speed marking effect;
7. High marking accuracy, clear marking, beautiful and durable;
8. Short production cycle, that is, marking immediately, which greatly saves the processing cycle and cost.

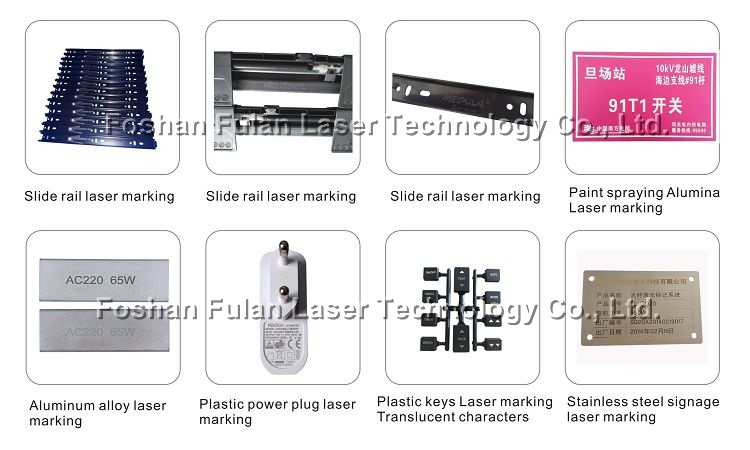

It is mainly used for online marking of slide rails, and can also be used for marking metals (aluminum, magnesium, zinc, tin, gold, silver, platinum, steel, stainless steel, alloys, etc.) and some plastic materials with higher ignition points.
