Device model: DJ-GQ30, DJ-GQ50
Laser power: 30W, 50W
Laser wavelength: 1064nm
Beam quality (M2): ≤1.8
Laser repetition frequency: 20 ~ 200KHz
Marking range: 170 × 170 , 220 × 220 (mm)
Maximum linear speed: 9000mm / s
Minimum line width: 0.03mm
Minimum character: 0.15
Cooling method: air cooling
Total power consumption: 700W, 800W
Power demand: 220V / 50Hz
Appearance size: 980 * 650 * 1620mm
1. The high-speed galvanometer scanning system has the characteristics of high speed and high precision;
2. Multi-station rotating platform dedicated for LED lamps, automatic control, to achieve independent work between single stations;
3. Automatic 360 ° rotation, reduce loading and unloading time and improve work efficiency;
4. Support automatic coding, printing serial number, batch number, date, bar code, QR code automatic jump number, etc .;
5. The beam quality is good, close to the diffraction limit, so that more precise marking can be achieved;
6. The special marking software is fast and stable in transmission, simple in operation and powerful in function;
7. The electro-optic conversion rate is as high as 30%, and the power consumption is about 10% of traditional models;
8. No consumables, maintenance-free, and long service life;
9. The eight-station worktable can be disassembled (the table of the laser marking machine is flat after disassembly);
10. This model is customized and can be configured with multiple light sources (ultraviolet, green, fiber, CO2, MOPA). At present, this model is equipped with fiber laser.

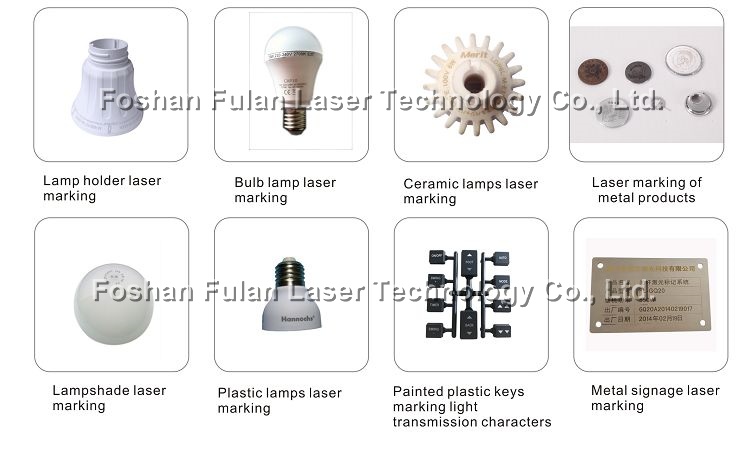

It is mainly used for marking LED lamp base and bulb ball rotation. It can also be used for marking metal and non-metal materials such as electronic components, hardware tools, electronic products, consumer goods, sensors, auto parts, crafts, precision equipment, gift accessories, sanitary ware, etc.
