Four-axis automatic fiber laser welding machine
Four-axis automatic fiber laser welding machine
Specifications:

Device model:FL-HJ-GQ500/1000/2000/3000/4000
Laser power: 500W/1000W/2000W/3000W/4000W
Pulse width 0.2-50ms
Laser wavelength: 1080nm/1070nm/1070nm/1070nm/1070nm
Maximum pulse energy: 15J/15J/15J/30J/30J
Fiber core diameter: single-mode, 50um optional/single-mode 100um optional/50, 100, 200um optional
Pulse frequency: ≤5000Hz
Aiming and positioning: with red light indicator (welding head CCD positioning)
Cooling capacity requirements: 1.2KW/2.5KW/5KW/8KW/12KW
Cooling method: water cooling
Power consumption of the whole machine: <2.5KW/<5KW/<1OKW/<15KW/<20KW
Power demand: 220V, 50/60Hz (500W); 380V, 50/60Hz (1000-4000W)
Appearance size: machine: length 108x width 115x height 170om / chiller (generally): length 47x width 80x height 86cm

Special-purpose customized laser equipment: The core components of the equipment are independently developed and produced by the Fulan Laser design team. Other main components are designed according to the actual situation and requirements of the customer to design the shape and performance of the machine.


Feature description

1. Using pure fiber laser, the beam quality is excellent, the photoelectric conversion rate is high (multiple times of YAG laser), low energy consumption, and long service life;

2. The welding seam is thin, the penetration depth is large, the taper is small, the precision is high, the welding speed is fast, the welding seam is firm, and the welding place is smooth and flat;

3. It can weld complex tracks such as planes, circles, and arcs;

4. Weldable graphics include: point, line, circle, square or any plane graphics drawn by AUTOCAD software (self-programming);

5. Equipped with CCD camera monitoring system, convenient for observation and precise positioning;

6. No need for consumables, high reliability of the equipment, continuous and stable processing for 24 hours, low operation and maintenance costs;

7. Special machine customization ability is strong, and exclusive models can be tailored according to customer needs, and special automatic tooling fixtures can be customized to realize the automatic welding and processing of products;

8. Simple operation, no need for professional welder technicians to operate;

9. No consumables needed in the later stage.

Note: The shape and performance of the machine can be designed according to the actual situation and requirements of the customer, and the welding machine, special fixture and laser automation integration (non-standard machine) can be customized for the customer. There are no fixed models for non-standard machines. All styles are based on meeting customer requirements and then make corresponding changes.

Application area

Mainly used for welding of stainless steel, aluminum alloy, steel, aluminum, gold, silver and other metals, welding of the same material and welding of some dissimilar materials. Can weld slightly thicker plates

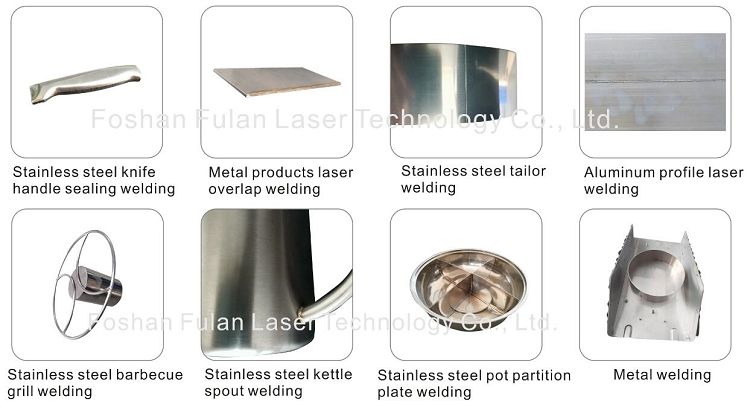

Sample show
